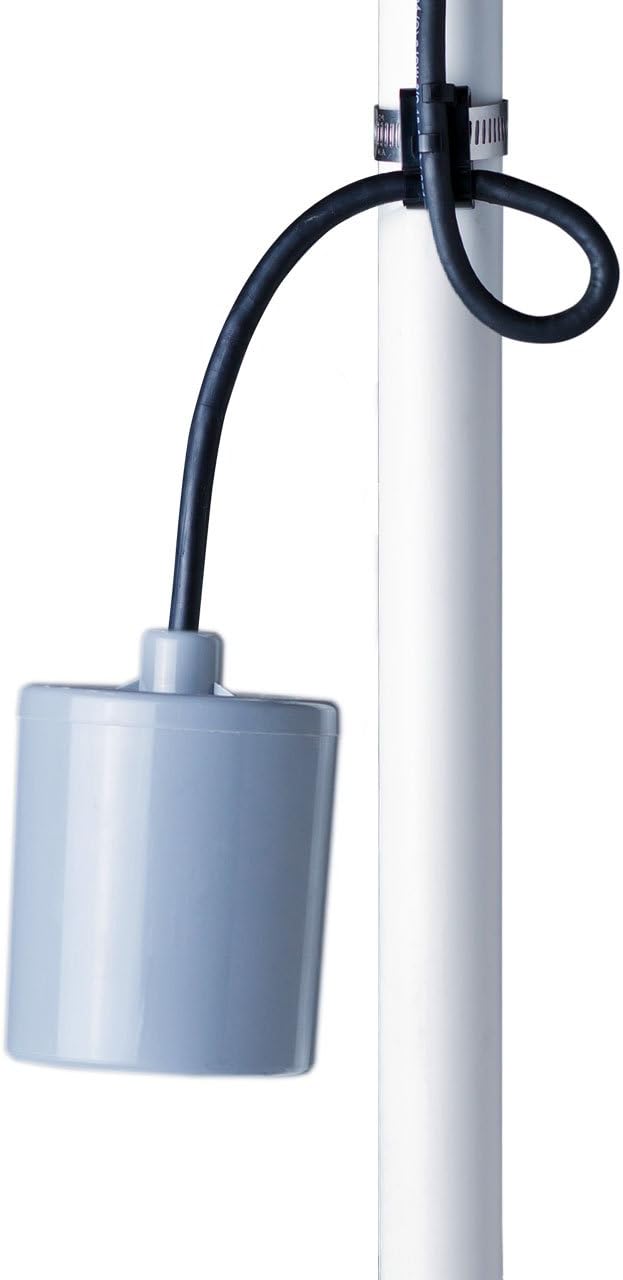

SJE PumpMaster Plus Mechanically-Activated Pump Switch SJE 1003265 20' Cord (Normally Closed/Pump Up)

U.S. Patent No. 5,087,801 and 5,142,108. Features: Heavy-duty contacts. Controls pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC. Adjustable pumping range of 18 -91 centimeters (7 - 36 inches). Without a plug for direct wiring in 120 VAC or 230 VAC applications. 20 foot cable. UL Recognized, CSA Certified. Specifications: CABLE: Flexible 14 gauge, 2 conductor (UL, CSA) SJOW, water-resistant (CPE) FLOAT: 7.75 centimeter diameter x 9.04 centimeter long (3.05 inches diameter x 3.56 inches long) high impact, corrosion resistance, PVC housing for use in sewage and water up to 60oC (140oF) ELECTRICAL: 120 VAC 50/50 Hz Single Phase: Maximum Pump Running Current: 15 amps Maximum Pump Starting Current: 85 amps Recommended Pump HP: 1492 W (1 HP) or less NOTE: This switch must be used with pumps that provide integral thermal overload protection.

• The SJE PumpMaster Plus pump switch is designed to directly control pumps up to 3/4 HP at 120 VAC and 2 HP at 230 VAC in potable water, water and sewage applications.
• This is the "Pump Up" version. meaning the pump is turned off when the float is up or floating. Also known as normally closed
• The SJE PumpMaster Plus pump switch is not sensitive to rotation or turbulence, allowing it to be used in both calm and turbulent applications.
• Without a plug for direct wiring in 120 VAC or 230 VAC applications
• 7.75 cm diameter x 9.04 cm long (3.05 inches diameter x 3.56 inches long) high impact, corrosion resistance, PVC housing for use in sewage and water up to 60oC (140oF)
