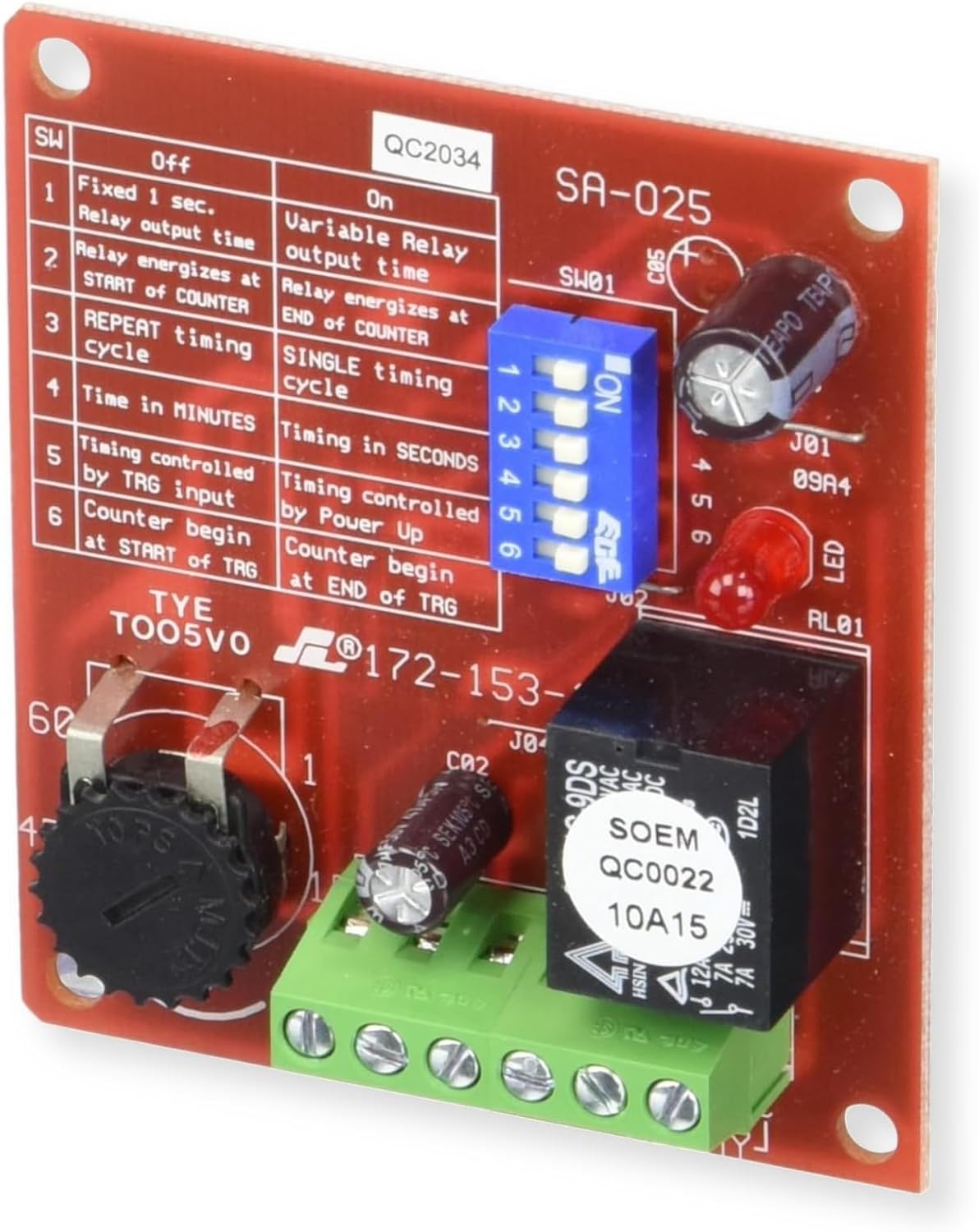

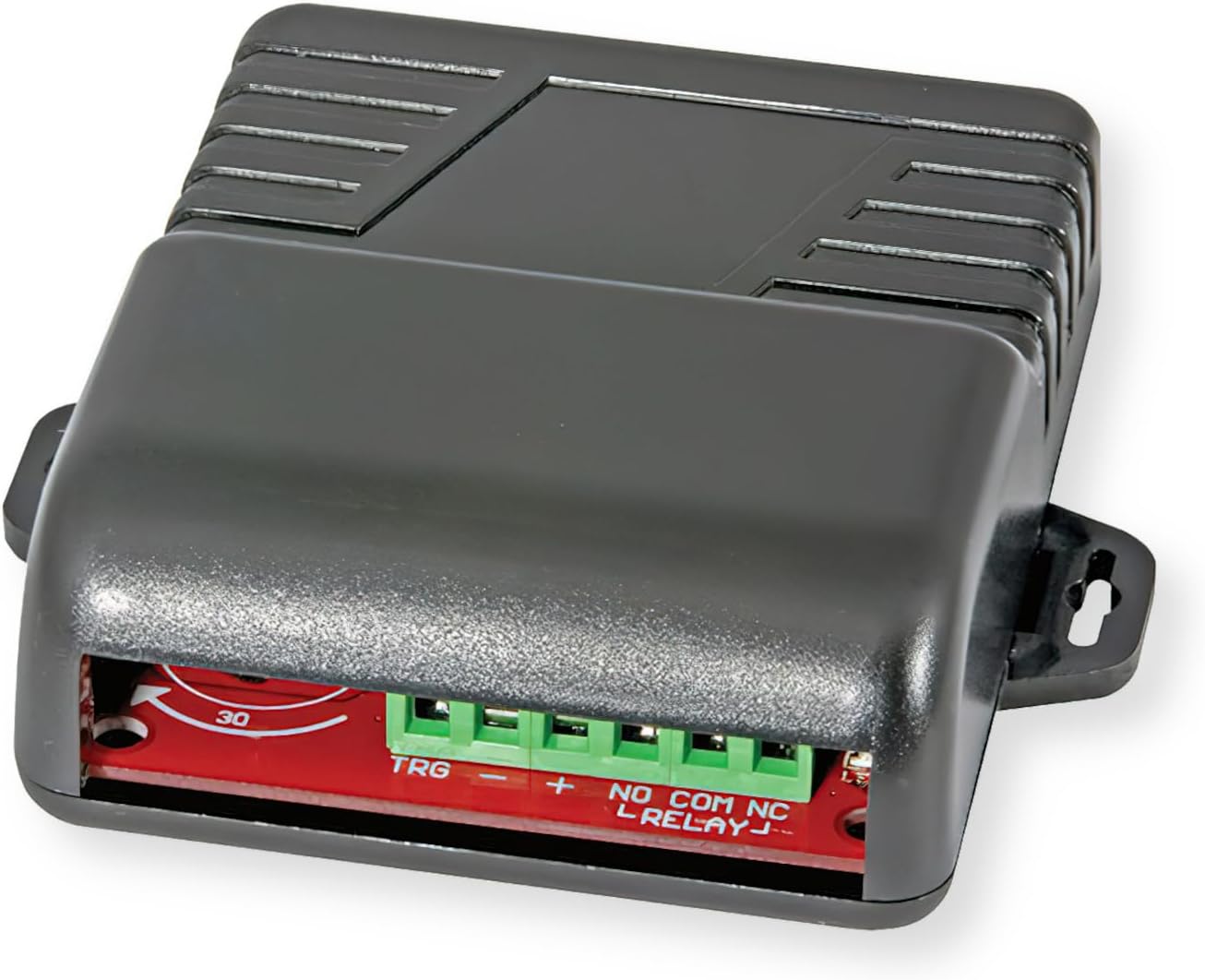

Seco-Larm SA-025Q Pack of 2 Multi-Purpose Programmable Timers, 12-24VDC Auto-Sensing Operation, Built-in Reset Function, Functions Programmed via DIP Switches, Form-C Relay

Seco-Larm SA-025Q Pack of 2 Multi-Purpose Programmable Timers, 12-24VDC Auto-sensing Operation, Built-in Reset Function, Functions Programmed via DIP Switches, Form-C Relay The SA-025Q Programmable Timer Module is suitable for a wide range of timed security and access control operations. Auto-sensing of input voltage and DIP switches for programming make installation easy Key Features: - Timer can be set from 1 second to 60 minutes - Can be triggered via an N.O. positive (+) trigger input signal or an N.C. negative (-) trigger device or by powering up the unit - Relay can be programmed to activate at the start or at the end of the timing cycle - Relay can also be set to activate for one second at the end of the timing cycle - Relay can be programmed to pulse (flash) or be steady on - Built-in reset function to manually reset timing cycle - Form-C relay, contact rated 10A@24VDC/250VAC - LED indicates relay is energized - 12~24VDC operation (auto sensing) - Current draw - Less than 1mA (standby) or 40mA (relay energized) - Functions programmed via DIP switches - no jumpers to cut Specifications: - Operating Voltage: 12~24 VDC (auto sensing) - Current Draw: Active:40mA@12VDC, 80mA@24VDC; Standby: less than 1mA@12VDC, less than 10mA@24VDC - Relay contact: 1x Form C NO/NC/COM, 10A@24VDC/250VAC - LED Indicator: 1x, Indicates relay is triggered - Overall Dimensions: 2.67 x 3.26 x 1.08 inches - Weight: 0.20 pounds

• Timer can be set from 1 second to 60 minutes
• Can be triggered via an N.O. positive (+) trigger input signal or an N.C. negative (-) trigger device or by powering up the unit
• Relay can be programmed to activate at the start or at the end of the timing cycle
• Relay can also be set to activate for one second at the end of the timing cycle
• Relay can be programmed to pulse (flash) or be steady on
• Built-in reset function to manually reset timing cycle
• Form-C relay, contact rated 10A@24VDC/250VAC
• LED indicates relay is energized
• 12~24VDC operation (auto sensing)
• Functions programmed via DIP switches - no jumpers to cut
