CustomWaterproof 52MM Dual Gauge Fuel Level Gauge+Water Temp Meter with Alarm 0-190ohm Fuel Level Sender Unit Temperature Sensor(475mm SensorXGauge)

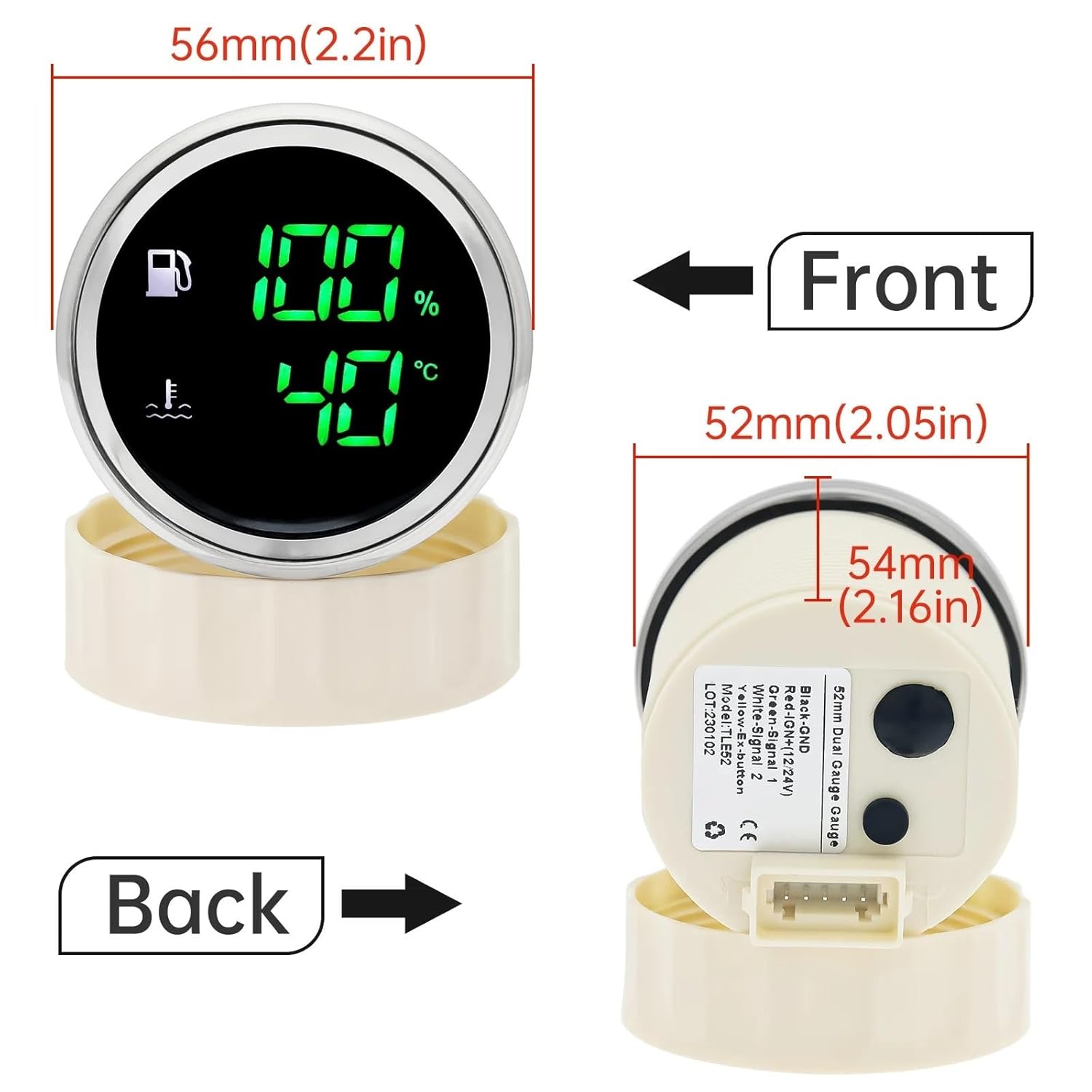

Oil Pressure GaugesWaterproof 52MM Dual Gauge Fuel Level Gauge+Water Temp Meter With Alarm 0-190ohm Fuel Level Sender Unit Temperature Sensors(Optional)PLEASE NOTEWe have three optionsOption 1:1X Temp SensorOption 2:1X 2 IN 1 GaugeOption 3:Gauge + SensorsBefore making the payment, please confirm the product you purchased clearly. The purchase of a single instrument does not include sensors.Option 11X Temp Sensor 10mmOption 21X GaugeOption 31X Gauge1X Fuel Sensor1X Temp SensorAbout the Gauge Reading:The device works, with a little delay (about 20-80 seconds) of changes in the readings. Apparently, it is done in order not to react to the splash of water in the tank.Gauge Connection:black line connect to the negative line,red line connect to the positive line,green line connect to the sensor signal line,yellow line is exchange button lineFeature:- 52mm diameter Two in One Gauge show with easy installation- Programmable Input Resistance Ohm Signal to adapt different fuel /water/temperature sensor0-190, 0-180, 10-180, 240-33, 240-30- High Resolution View under sunshine- Installation Diameter: 52mm (2inch)- Reverse polarity protection and anti-fogging performance- Working Voltage:12V/24V- Working temperatures: - 40 to 85°C- IP66 Waterproof- Fuel Level Gauge Alarm Set:20%-Water Temperature Gauge Alarm Set : 98±2INSTALLATION GUIDE1. Cut an 52mm (2-1/16") hole in the panel (II) allow a clearance of 55mm (2 3/16"). behind the panel.2. Remove fastening ring (I), insert gauge from front. Tighten gauge (III) using fastening ring ( I)3. Connect cables according to the diagram/label.Setting Menu:"Unit" "R 1" "R 2"1.Hold & Press the button Power On Gauge the LED screen will show Switch Show Unit, R1, R2 2.UnitFuel Gauge, Water Level, HTG Sewage Level: %Water temperature: or 3.R1---Configure Top Row Signal Range Press Button to switch 000 ~006For example, LED will show 001, which means 0~180ohm, then release the button and wait digital flash to complete to save setting4.R2---Configure Top Row Signal Range Press Button to switch 000 ~006.For example, LED will show "002" , which means 10~180ohm, then release the button and wait digital flash to complete to save settingBlack shellFuel Level SensorHow to choose the correct length:Sensor length = Fuel tank/Water tank height - 10mmSensor parameter:* Resolution range: 21 mm* Assembly: SAE standard 5 holes* Operating temperatures: - 40 to 85* Rated current for alarm switch: 500mA* Operating temperatures: - 40 to 85 Celsius* Level Sensor fit for Diesel & Gasoline EngineFit for Fuel Level Gauge and Water Level GaugeLiquid level sensor length:100mm,125mm,150mm,200mm,250mm300 mm ,350 mm ,400mm,and so on* Mounting: 5 pieces of M5 screws and 2 mm thick gasket* Output signal: 0~190 ohm (Standard European), 240~33 ohm (Standard American)Snesor Package Includes:1 x Sensor1 x Gasket5 x Screws==========High-concerned chemical : NoneOther Part Number : fuel level gaugePlacement on Vehicle : FrontInterchange Part Number : Mini Digital Fuel Meter Motorcycle GaugeSpecial Features : 0-190ohm/240-33ohm Fuel Level MeterItem Weight : 0.4kgItem Height : 0Item Width : 52mmItem Length : 52mm Boat Water Tank Level Gauge Part Number : Auto Digital Fuel Level Gauge NO. : Fuel level gaugeMaterial : stainless steel 316L bezel+anti-fog glassItem name : Custom 2 In 1 Dual 52mm Fuel Level Temp GaugeInput signal : 0~190ohmType : Fuel Gauges for Auto Boatfeature : Auto Digital Fuel Level Gaugeboat car fuel gauge : fuel level sensorApplication : Car Fuel Gauge for car truck yachtfuel gauge sending sensor : fit Fuel Level Meterfuel gauge sending sensor support : Water Liquid Level Gauge MeterWater Liquid Meter : Car Boat Water Tank Level GaugeFuel Sending Unit : fit for Water Level Gauge Fuel level gaugewater level sensor : 100mm~550mmAssembly : SAE Standard 5 Holes5 Holes Sensor Support : Fuel Level Gauge, Water Level GaugeLEVEL SENSOR : boat fuel gaugewater level : fuel level sensor(Optional)Water Temp Sensor : 10mm(Optional)Water temp gauge : Temperature Sensorwater temp sensor : 301-23ohm

• Oil Pressure Gauges
• CustomWaterproof 52MM Dual Gauge Fuel Level Gauge+Water Temp Meter With Alarm 0-190ohm Fuel Level Sender Unit Temperature Sensor
