CANADUINO® 5 pcs Nano V3 Module Atmega328 + CH340 with USB-C Port (Compatible with Arduino IDE)
4.3 (142 items)
Limited Time SaleUS$16.40 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216992526 | Release Date | 2026/04/19 | List Price | US$10.93 | Model Number | 216992526 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

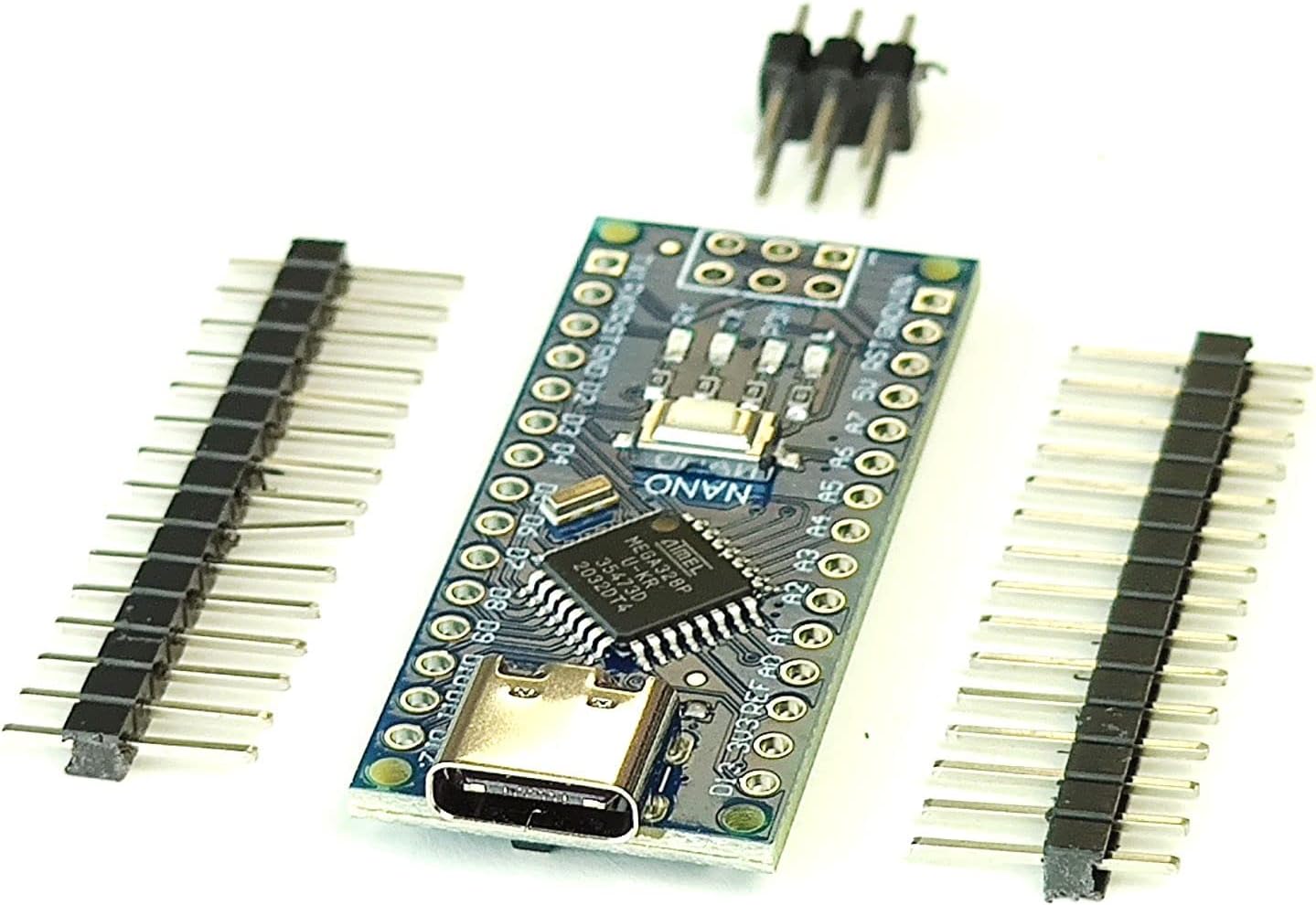

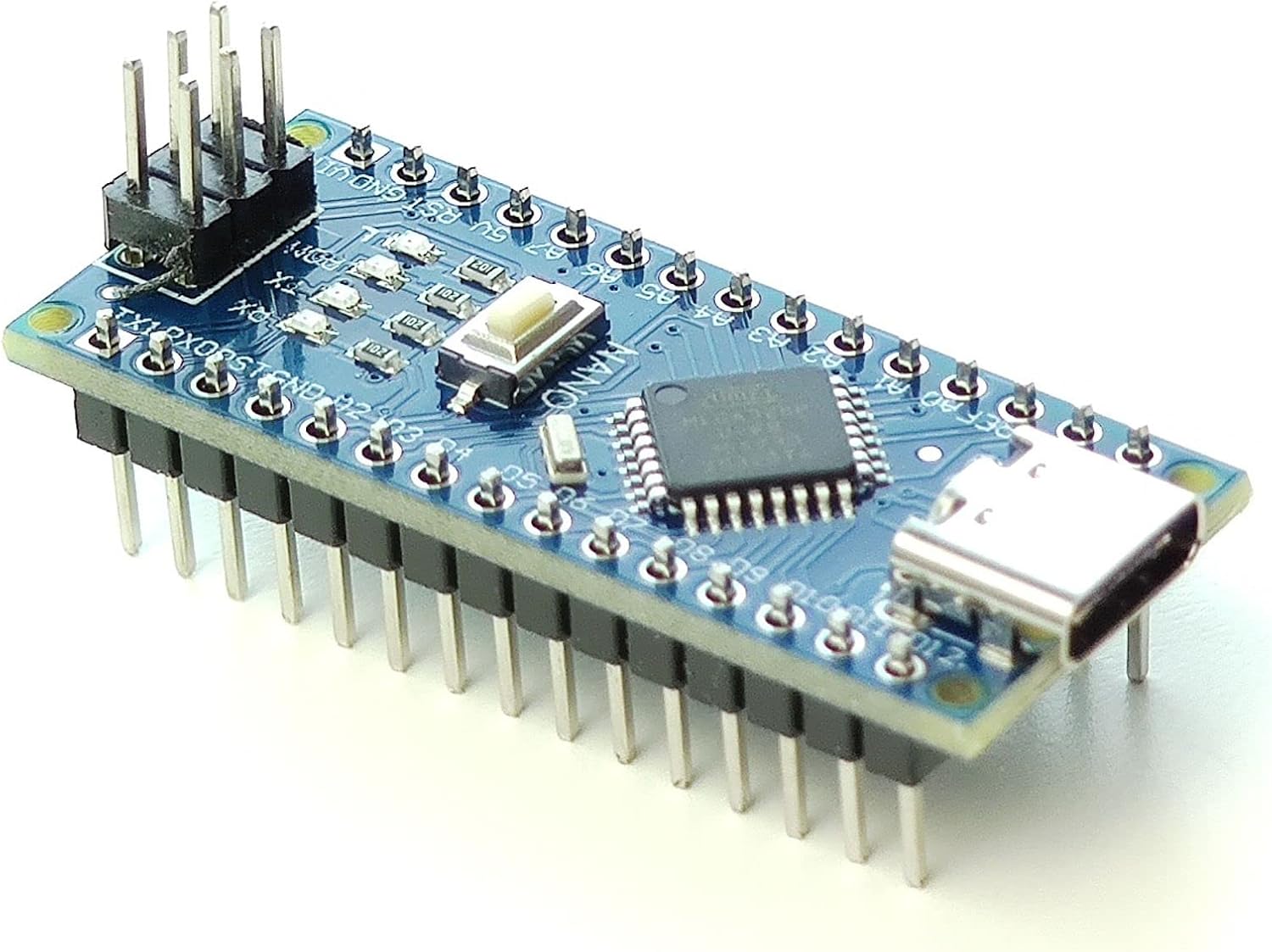

The Nano V3 USB-C is based on the 32kB Atmega328 with 16MHz and a USB-C port. The CH340G USB UART on board is the most common of it's kind in the world, and avoids known issues with FTDI or Prolific chips. Headers are included but not factory installed. - Nano V3 compatible with Arduino - Atmega328P-AU with 16MHz - up to 8 analog inputs - up to 20 digital I/O - 6.2 to 15V DC operating voltage - 3.3V 50mA output for auxiliary equipment like sensors - bootloader for Arduino IDE installed - I/O and ICSP headers are included - WCH CH340 USB-UART - USB-C port The Nano V3 USB-C has 32 KB flash memory (2 KB used for the bootloader), 2 KB of SRAM and 1 KB of EEPROM. Each of the 14 digital pins on the NANO V3 USB-C can be used as an input or output, using pinMode(), digitalWrite(), and digitalRead() functions. They operate at 5 volts. Each pin can provide or receive a maximum of 40 mA and has an internal pull-up resistor (disconnected by default) of about 20 kOhms. Note: You might need to find out which of the 2 bootloader settings in Arduino IDE works best
- 5 x Nano V3 (100% compatible with Arduino) based on the 32kB Atmega328 with 16MHz and a USB-C port
- up to 8 analog inputs
- up to 20 digital I/O
- 6.2 to 15V DC operating voltage
- WCH CH340 USB-UART
| Item Weight | 0.704 ounces |
|---|---|
| Manufacturer | UNIVERSAL-SOLDER Electronics |
| Item model number | N.A. |
| Product Dimensions | 0.79 x 0.79 x 0.39 inches |
