Bud Industries CN-5711 Die Cast Aluminum Enclosure 8.75" L x 5.74" W x 2.25" H, Natural
4.5 (115 items)
Limited Time SaleUS$24.90 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215628125 | Release Date | 2026/04/12 | List Price | US$16.60 | Model Number | 215628125 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

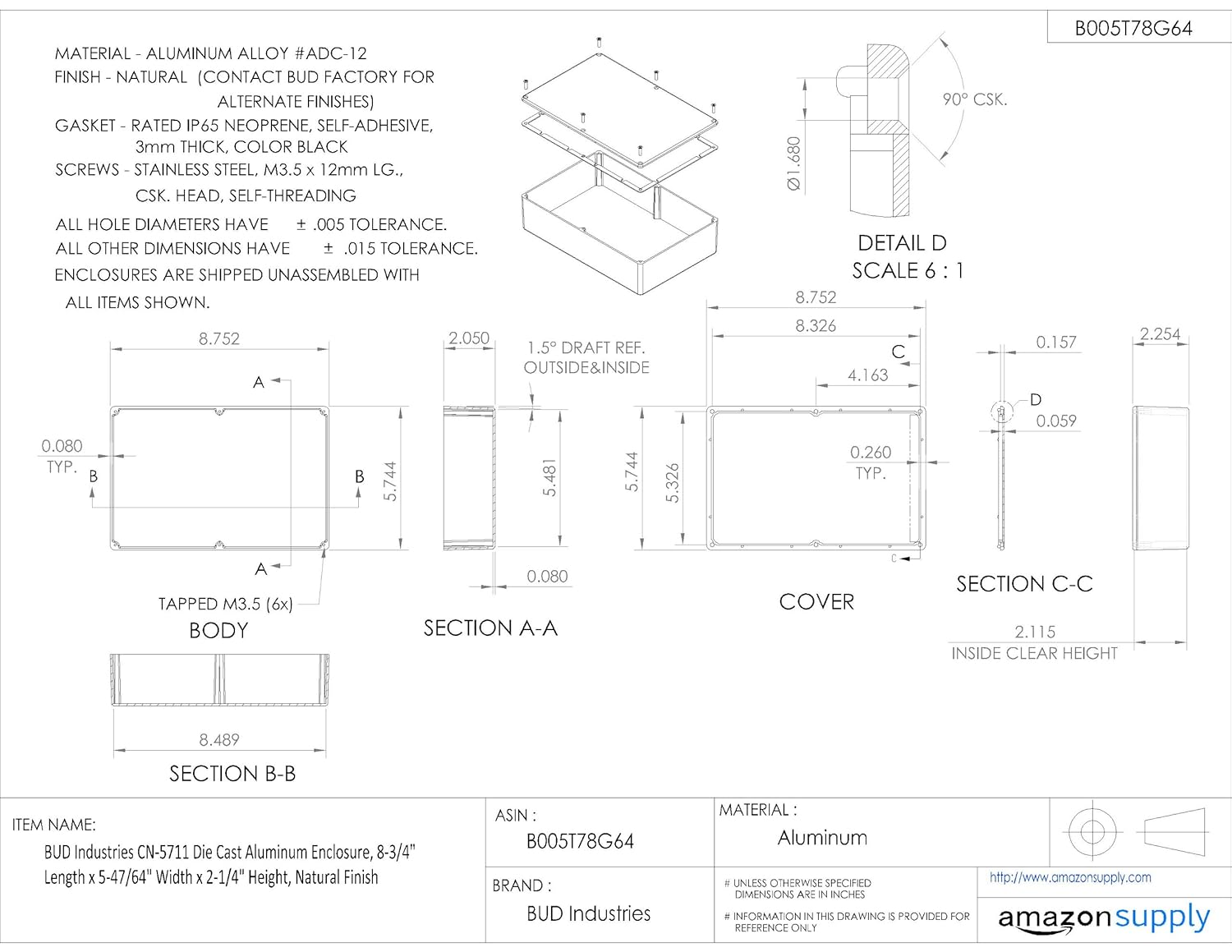

Designed to meet NEMA 1, 2, 4, 4x, 12, 13 and IP66 ratings. Made from durable ADC-12 aluminum alloy. Self-adhesive EPDM gasket easily attaches to cover. Molded-in mounting flanges located along the short side of the box. Cover attaches with 4 or 6 stainless steel, thread-forming screws. Most models have internal card guides for mounting PC Boards or partitioning. Easily machined and modified to your particular needs. Card Guides, Sealed. Cover include design. Natural finish. External measures 8-3/4" length by 5-47/64" width by 2-1/4" height; internal measures 8-37/64" length by 5-37/64" width by 2-5/64" height.
- SPECIFICATIONS: Our die cast aluminum enclosure is designed to meet NEMA 1,2,4, 4x, 12, 13 and IP66 ratings.
- MEASUREMENTS: This product has nominal external measurements of 8.75 inch length by 5.74 inch width by 2.25 inch depth.
- ATTACHABLE COVER: Self-adhesive Neoprene gasket easily attaches to cover. The cover also attaches with 4 or 6 stainless steel, M3.5 thread-forming screws.
- DURABLE: Our enclosure is made from durable ADC-12 aluminum alloy and a natural finish.
- BUD INDUSTRIES: Bud has an extensive line of affordable products ranges from small metal and plastic electronics enclosures to large cabinet racks. Many of our enclosures meet IP 67/NEMA requirements.
| Color | Natural |
|---|---|
| Style | No Mounting Bracket |
| Material | Aluminum |
| Brand Name | Bud Industries |
| Unit Count | 1.0 Count |
| Finish Type | Stainless Steel |
| Item Weight | 20 Grams |
| Manufacturer | BUD Industries |
| Model Number | CN-5711 |
| Installation Type | Screw In,Self Adhesive |
| Specification Met | nema |
| Included Components | Die Cast Aluminum Enclosure 8.75" L x 5.74" W x 2.25" H, Natural |
| Item Dimensions D x W x H | 2.25"D x 5.74"W x 8.75"H |
