46440 48Gbps Wall-mountable 4K 120Hz and 8K60Hz 4x4 HDMI Matrix Switch Supports IR Remote, RS-232, and Web GUI Control with Audio Extractor, arc

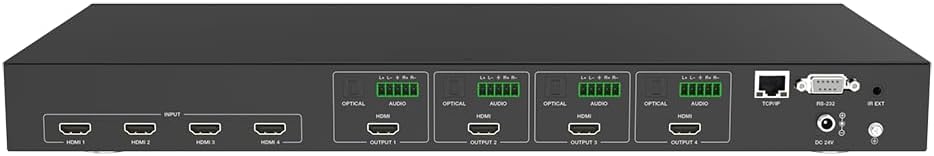

Features INPUTS: 4 × HDMI INPUT [Type A, 19-pin female] OUTPUTS: 4 × HDMI OUTPUT [Type A, 19-pin female], 4 × OPTICAL AUDIO [S/PDIF], 4 × L/R AUDIO [3.5mm Stereo Mini-jack] HDMI 2.1 and HDCP 2.3 compliant 4 HDMI inputs can be independently routed to 4 HDMI outputs Video resolution is up to 8K 60Hz 4:2:0, 8K 30Hz 4:4:4 and 4K 120Hz 4:4:4, as specified in HDMI 2.1 Support 48Gbps video bandwidth HDR, HDR10, HDR10+, Dol by Vision pass-through Support resolution downscaling and HDR conversion for each output port VRR, ALLM, QMS, QFT, SBTM are supported Support optical audio and balanced analog audio output Advanced EDID management Control via front panel buttons, IR remote, RS-232, and Web GUI Audio Formats: HDMI IN/OUT: LPCM, Dol by Digital/Plus/EX, Dolby True HD, Dol by Atmos, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD AUDIO BREAKOUT: Optical outputs: LPCM 2.0CH/Dolby/DTS 5.1CH, Balanced Analog Audio Outputs: LPCM 2CH ESD Protection: IEC 61000-4-2: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) Dimensions: 440mm [W] *203mm [D]* 44.5mm [H] Weight: 2.65kg Package Contents 1 *48Gbps 4×4 HDMI Matrix 1 *24V/2.7A Locking Power Adapter 1 *IR Remote 1 *IR Wideband Receiver Cable (12V, 1.5m) 1 *AC Power Cord (1.5m) 1 *RS-232 Serial Cable (1.5m, male to female head) 4 *5pin-3.81mm Phoenix Connector 8 *Machine Screw (KM3*6) 2 *Mounting Ear 1 *User Manual

• The 48Gbps 4x4 HDMI Matrix is HDMI 2.1 and HDCP 2.3 compliant. Supports the transmission of high resolution video (up to 4K2K@120Hz 4:4:4 12bit and 8K4K@60Hz 4:2:0 12bit) and multi-channel digital audio from 4 HDMI sources to 4 HDMI displays.
• With audio extractor: optical and L/R outputs. Supports ARC
• Resolution downscaling and HDR conversion for each HDMI output are also supported.
• Can be controlled via front panel buttons, IR remote, RS-232, and Web GUI. Supports EDID management

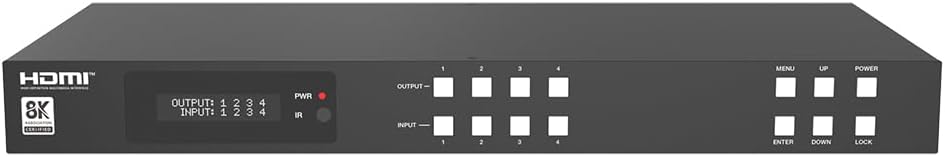

• With a pair of mountable ears, IR extension cable, offer easy installation in cabinet. With LCD display. User friendly and all operations is clearly seen.
